PDS - ENGINEERING, DESIGN & DETAILING SERVICE

PDS provides a full design & detailing service in any CAD format.

Design & Detailing in AutoCad 2D through to full 3D Solidworks, Inventor & Catia packages.

Exploded views, visuals & diagrams if required.

RENDERING & VISUALISATION

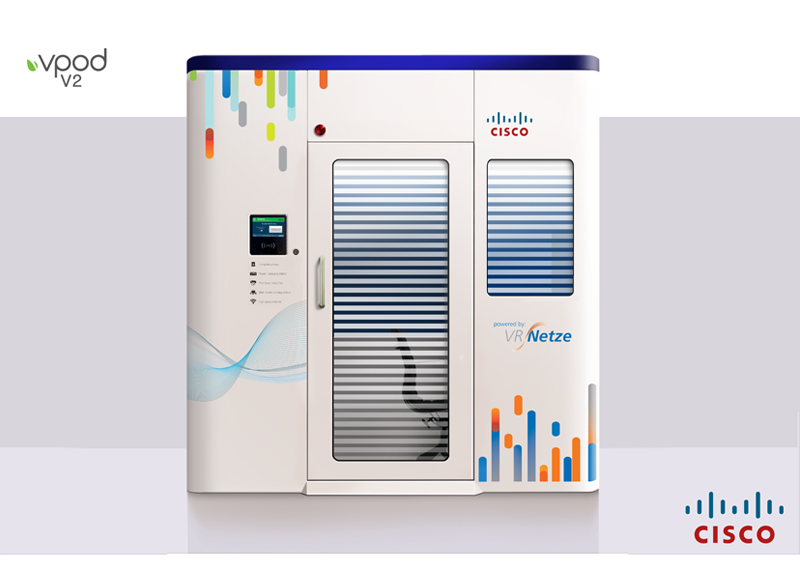

PDS also provides Photo Realistic Model Rendering service.

We use the latest visual modelling software & supports in all 3D CAD model type formats such as .stp, .sat, .iges, .wrl, etc.

We can transform any 3D format file from mechanical data through to architecturual data.

Designs & concept models can be transformed into real photo quality prints to present to customers before any materials or manufacturing costs are incurred, saving costs on project from the start.



DESIGN, DETAILING AND RENDERING IMAGES

Click on the images below for more information

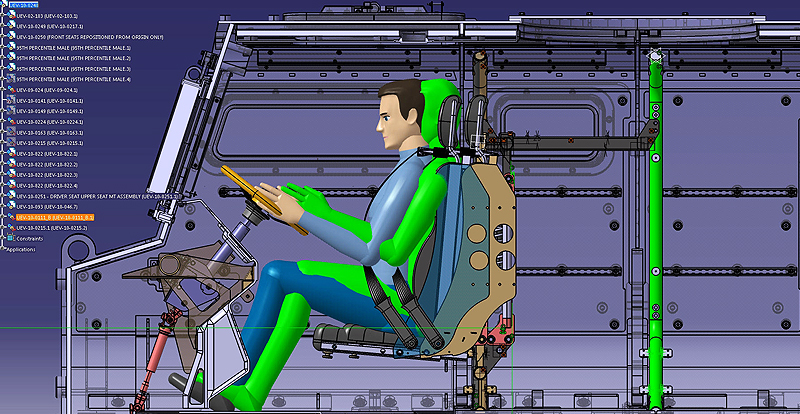

H Point design & Packaging for vehicles

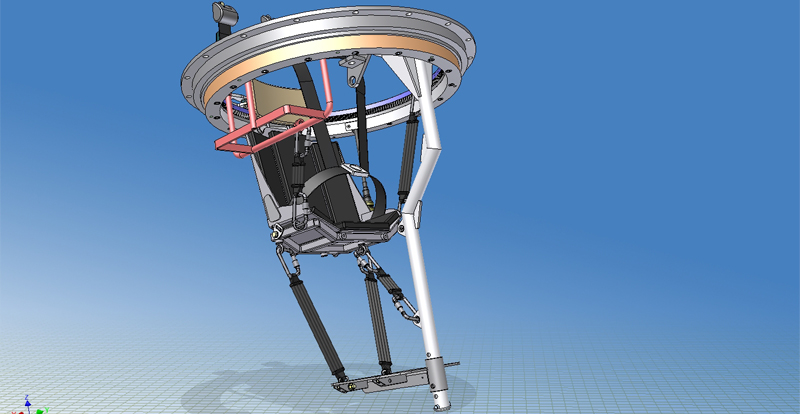

Marine Spine Shock Seat Concept
Turret blast seat concept
Fully detailed drawing work with exploded view arrangements and BOM's added

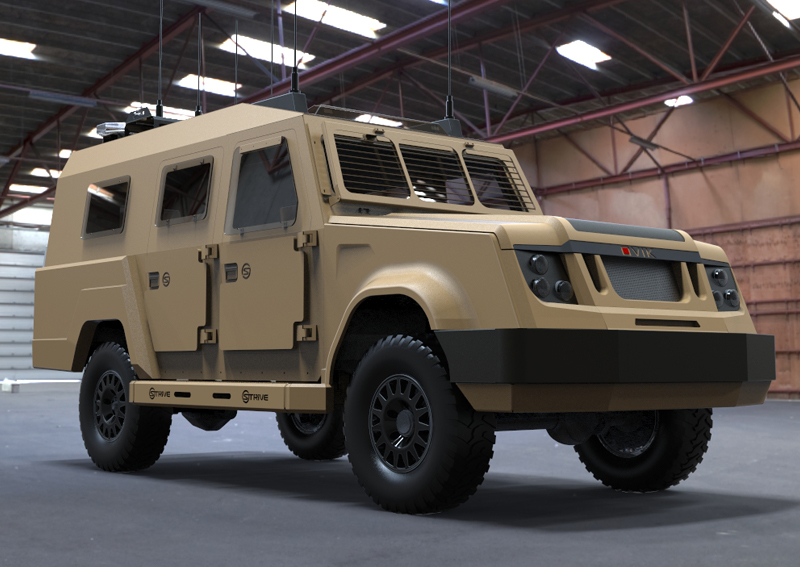

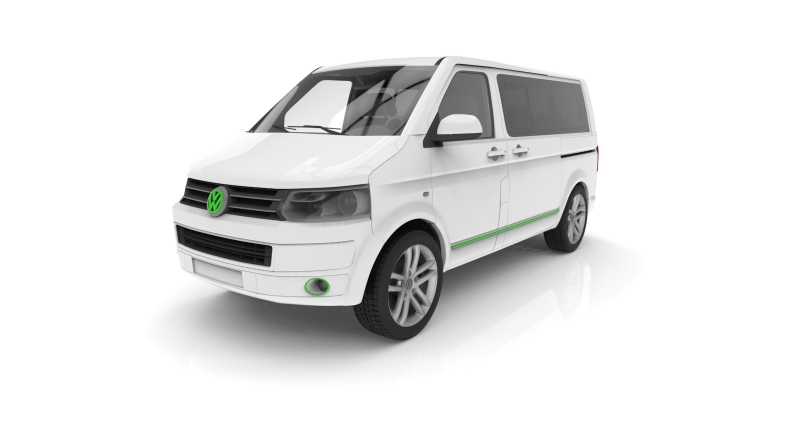

Vehicle packaging & design
Advanced sheet metal designing where all models go straight to production via laser cutter nesting solutions with correct bend allowances added to all developments
Designing a variety of testing & trialling equipment in various industries

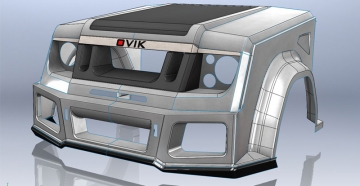

SolidWorks surfacing
