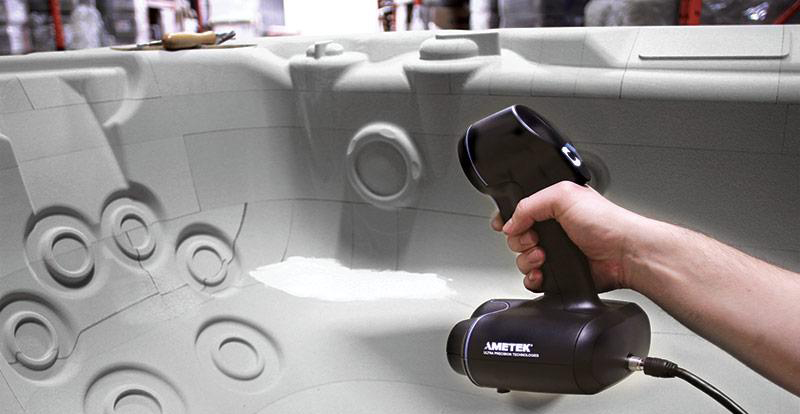

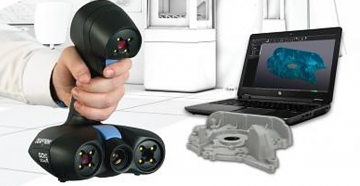

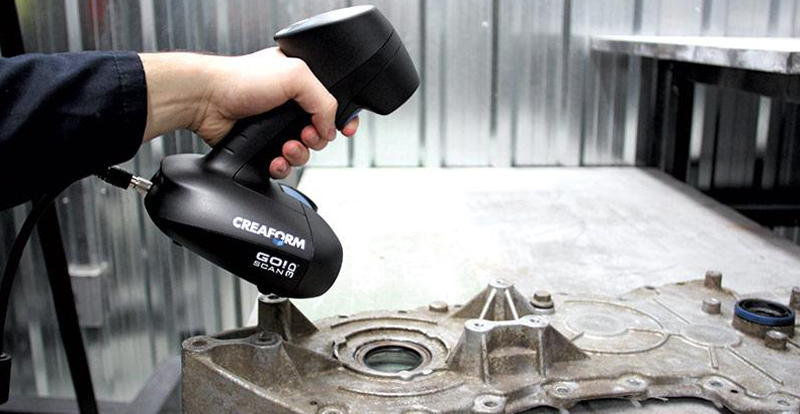

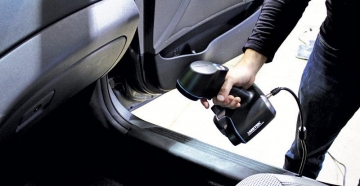

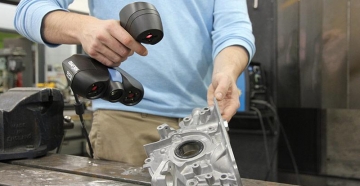

PDS offers a mobile / hand held 3D scanning service with the latest hardware & software. The system can scan any objects from automotive parts through to castings, architecture etc. The scanner needs no targets generally, but will also work with parts needing targets.

m50

m56

Photo gallery of projects PDS has been involved in from defence, marine, through to food automation. A variety of vehicle based projects some of which PDS was the only design company involved from concept through to deployment in the field.

Read more...

m60

PDS offers over 25 years of experience in Mechanical, Fabrication, Engineering & Automation Design Systems. Project engineering from concept to delivery stage. For any concept, mechanical or vehicle based requirement, please contact us for more details....

Read more...

MOBILE 3D SURFACE SCANNING

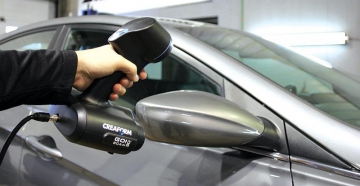

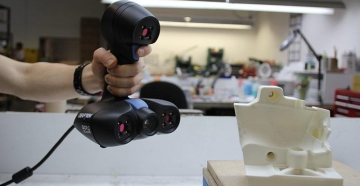

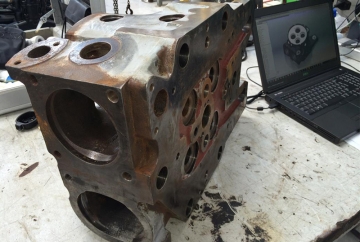

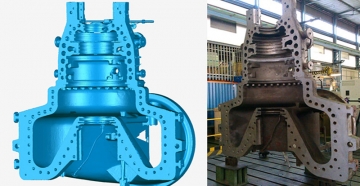

1st STEP - 3D SCANNING:

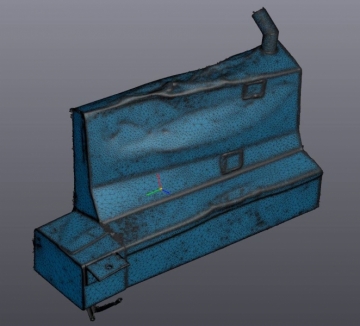

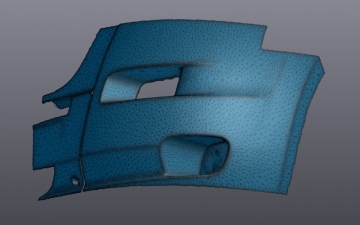

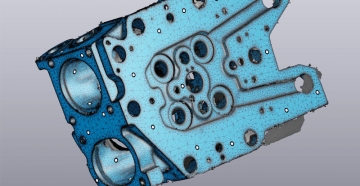

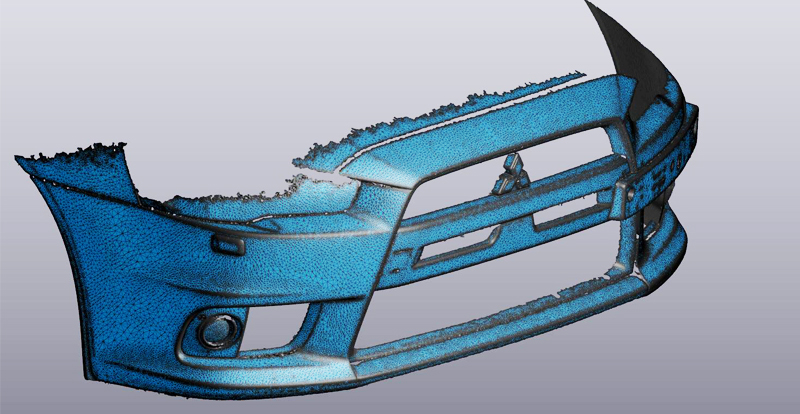

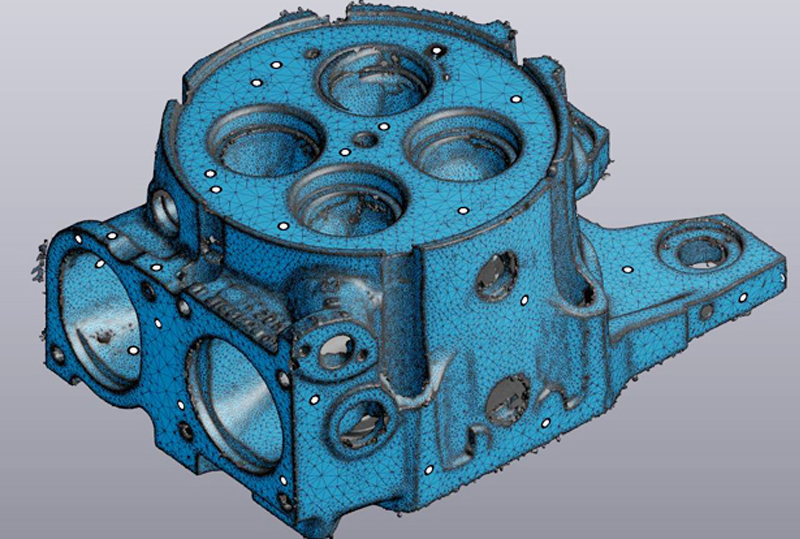

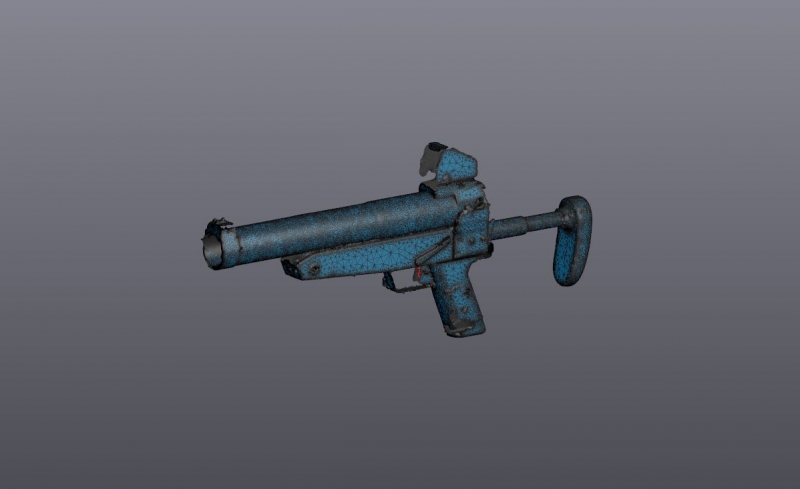

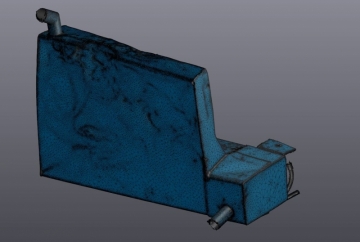

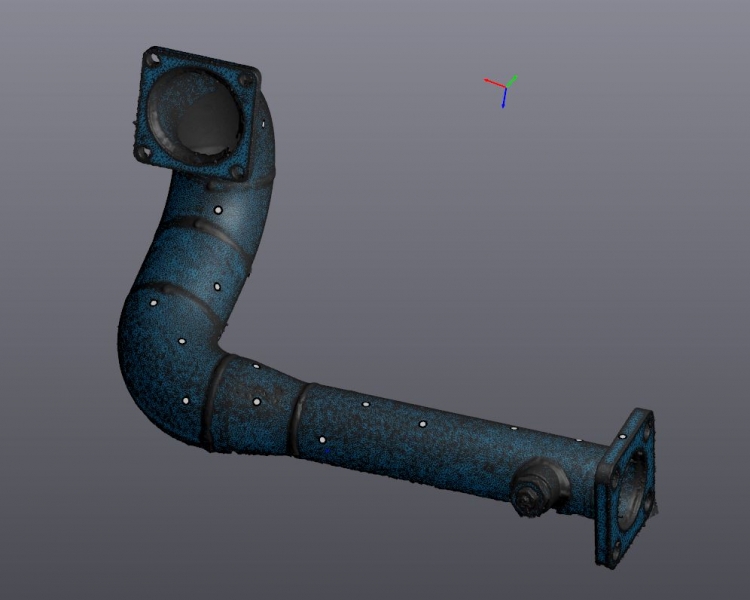

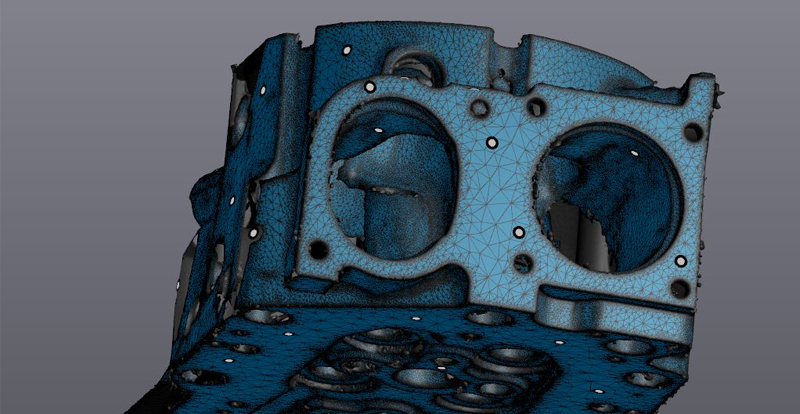

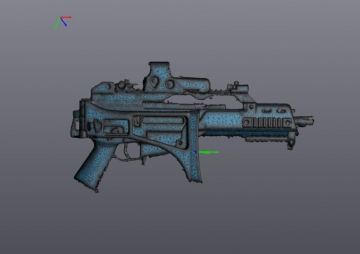

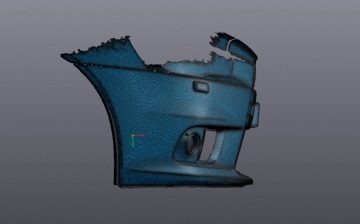

The deliverable will be a meshed .stl file. This can, in some circumstances be left on the day but some complex meshes need cleaning up before delivery. This will be done off site. There are other mesh formats available if required.

PDS will provide a Solid Model Viewer / Software also for the customer to view and manipulate scanned models.

Tolerances approx 0.3mm / metre accuracy & up to 0.5mm resolution over 4 m/3.

The need to apply targets and sometimes powder to parts for cleaner scans. No damage to parts at all.

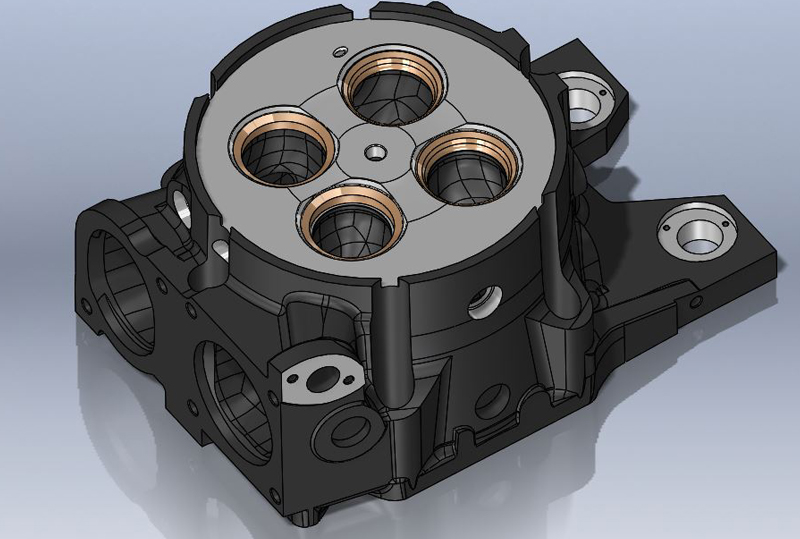

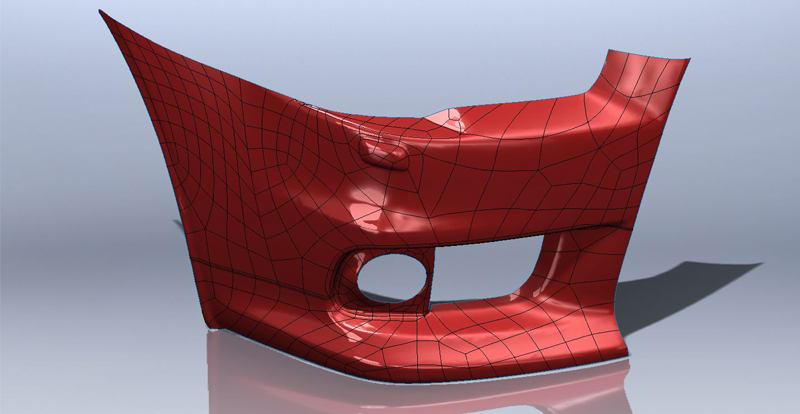

2nd STEP – POST PROCESSING / CONVERTING SCAN DATA (.stl mesh) INTO SOLID BODY / SURFACES CAD FORMAT (i.e. .step / iges etc):

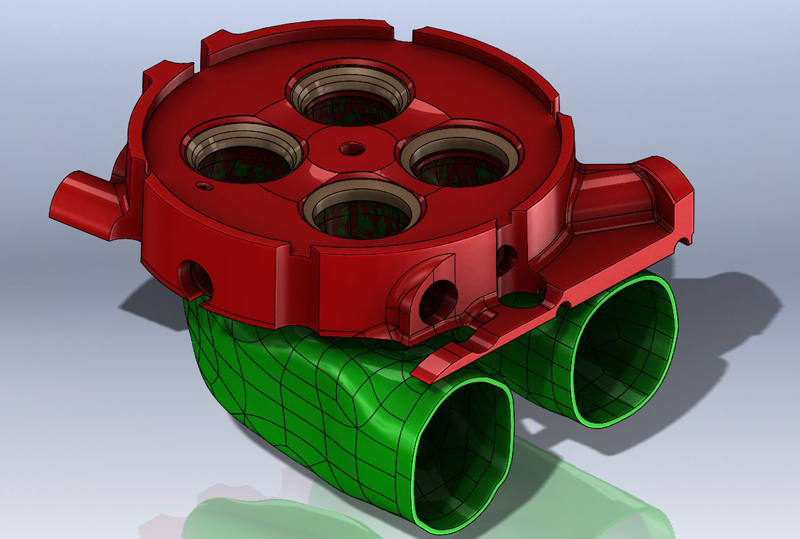

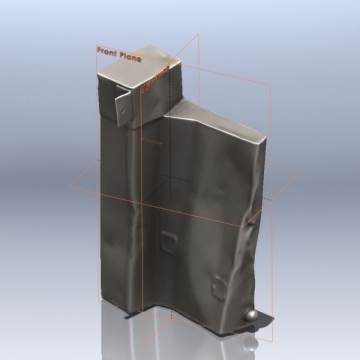

This requires the scanned .stl mesh file to be translated / remodeled in a native CAD package (Solidworks Premium) to turn it into typical CAD i.e. step, iges, sat formats for drawings, moulds, production etc.

This is an additional service to the above. It will not be done on site on the day. TBC

These areas need discussing based on what the final requirement is. TBC

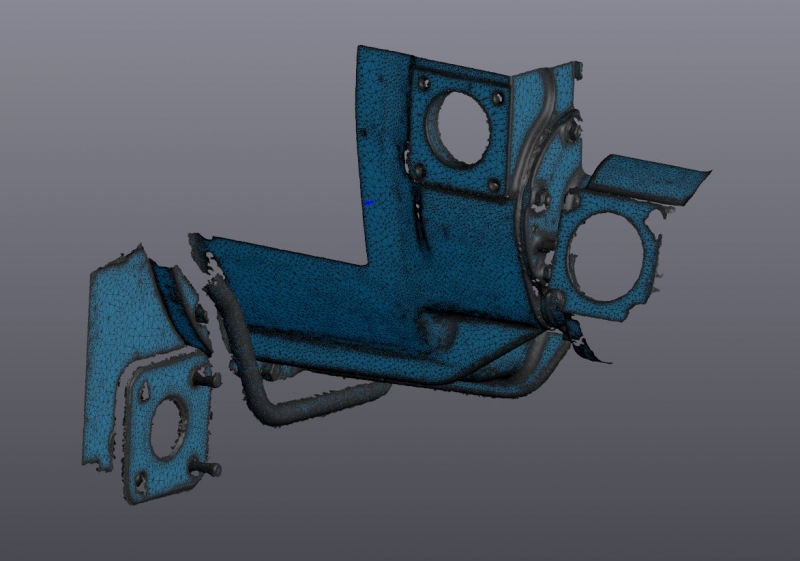

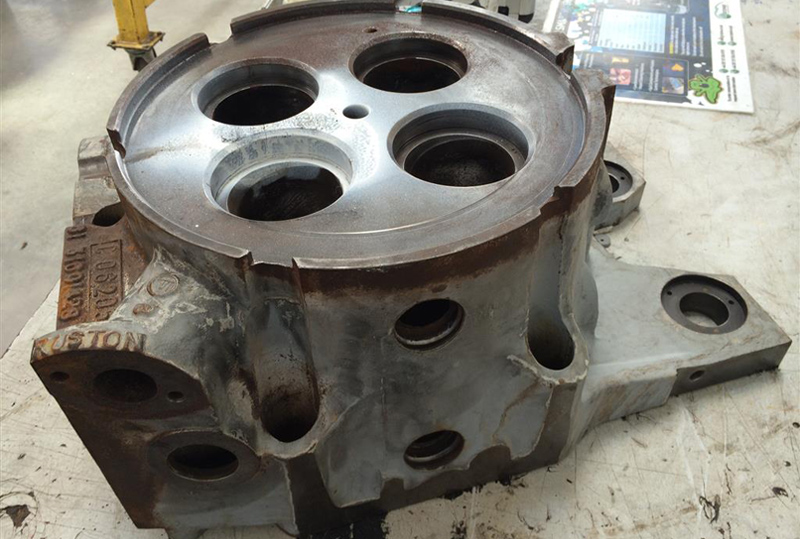

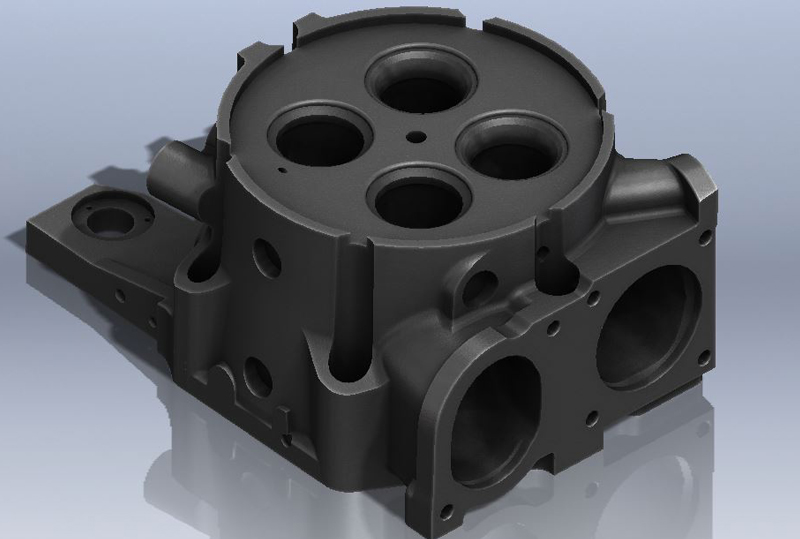

3D SURFACE SCANNING IMAGES

Click on the images below for more information
